Continuous-Type Carbonizer / ZEBIO-C Series
Carbonizer
A single ZEBIO-C Series unit enables the creation of a closed-loop system that utilizes exhaust gas.
The ultimate closed-loop system capable of reusing exhaust gas and waste heat
Designed to maximize energy efficiency throughout the entire life cycle, the ZEBIO-C Series recovers the gas generated during the carbonization process and reuses it as a heat source. Furthermore, by adding optional equipment, it is possible to build a power generation system or utilize alternative energy sources instead of fossil fuels. It is also suitable for processing moisture-containing waste such as sludge and paper sludge.
ZEBIO-C Options
Dries waste with a moisture content of 80% or higher to approximately 30% at the entrance of the carbonization unit, dramatically improving carbonization efficiency. Additionally, the hot air utilizes pyrolysis gas energy to reduce operating costs.
Other Options:
Water softening unit, chiller/cooling tower, pyrolysis gas reforming unit, waste heat boiler, dust removal unit, activated carbon production unit, power generation unit
G: Gas,W: Water
Features of the ZEBIO-C Series
1．Circulating use of pyrolysis gas as a heat source

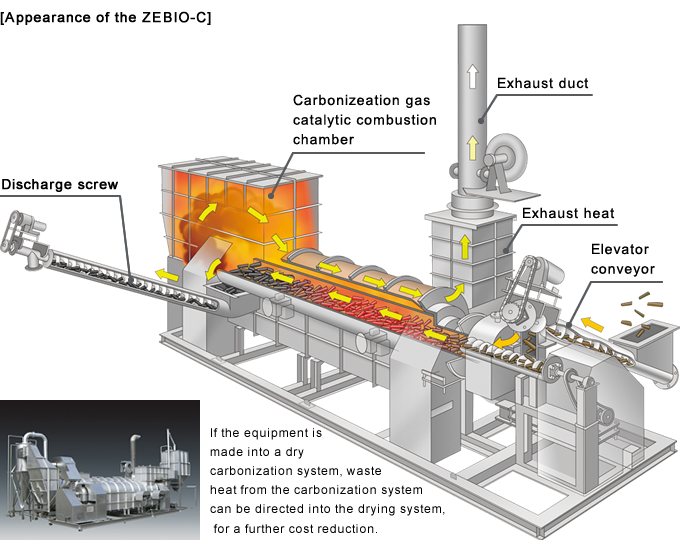

This is a “circulating indirect heating system” that utilizes the pyrolysis gas generated during the carbonization process as a heat source for heating.
2．Capable of processing waste containing over 80% moisture
It can carbonize waste with high moisture content (such as sludge, paper sludge, and food waste).
3．Compact design for space efficiency
The system can be customized to fit the site and installed even in narrow spaces with limited room.
4．Compatible with power generation systems (Optional specification)
A power generation system can be added as an option by feeding pyrolysis gas into an engine or converting waste heat into steam.
5．Ensuring safety through automatic control (Optional specification)
The control system enables highly safe automatic operation.
6．The ZEBIO-C Series supports an ideal closed-loop system with a single unit
By adding components such as biomass fuel burners and heat exchangers, it is possible to reduce operating costs and utilize steam and hot water.
The ZEBIO-C Series: Boasting One of the Largest Installation Records in Japan
| Business type | Target material |
|---|---|
| Intermediate Treatment Industry | Sludge, coffee grounds, kaolin, building demolition materials |
| Food Companies | Sludge |
| Metal Companies | Sludge |
| Paper Companies | Paper sludge |
| Construction Industry | Thinning wood |
| Sewage Treatment Plants | Sewage sludge |
| Meat Processing Centers | Raw sludge |
| Automotive Manufacturing | Paint residue |
The most comprehensive lineup available, capable of handling waste from all industries—from moisture-laden sludge to paper sludge and chicken manure.

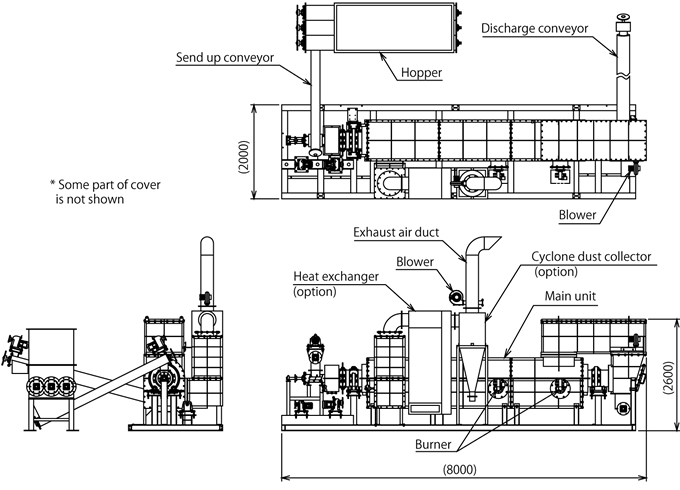

ZEBIO-C-350 Installation Example
Biomass Gasification Power Generation
